Titanium Bl Flange
Safon: ANSI / ASME B16.5
Deunydd: Gr1 Gr2 Gr5 Gr7 Gr12
Cais: Diwydiant cemegol
Pris yr Uned: $25usd/pc-$85usd/pc
Arwyneb Sealing: RF, FF, TG, RJ ac ati.
Maint: SSW 1/2 - SSW 24(DN 10 - 2000)
Pwysau: 150#-2500 #
Arwyneb: Pwyleg
Techneg: Forged a CNC Machined
Arolygiad: UT% PT%
Tystysgrif: ISO9001, TUV ac ati.
MOQ:1PC
Ardal Ffatri:3000 ㎡
Staff y cwmni:48
Staff gwasanaeth tîm masnach dramor:20
Gwneuthurwr fflangi titaniwm proffesiynol Tsieina

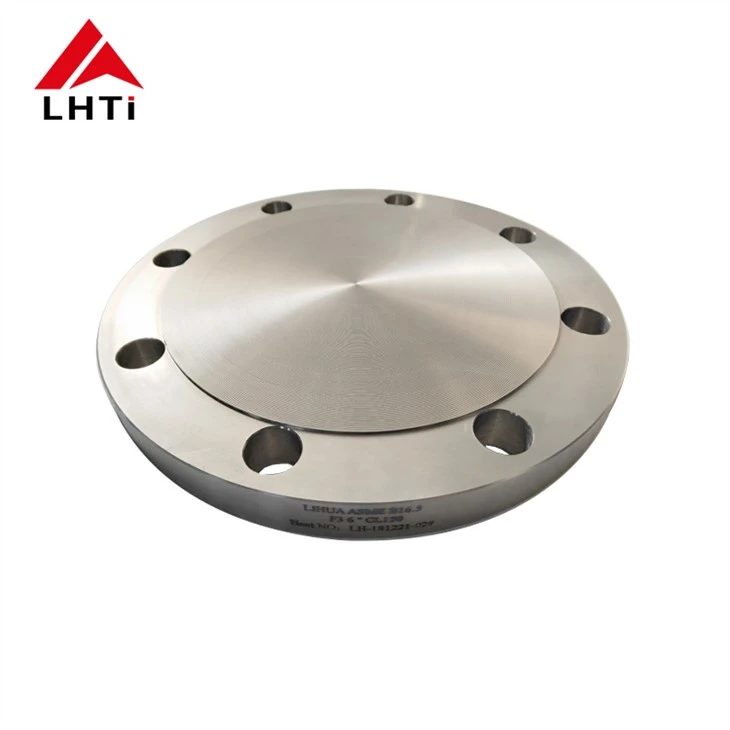

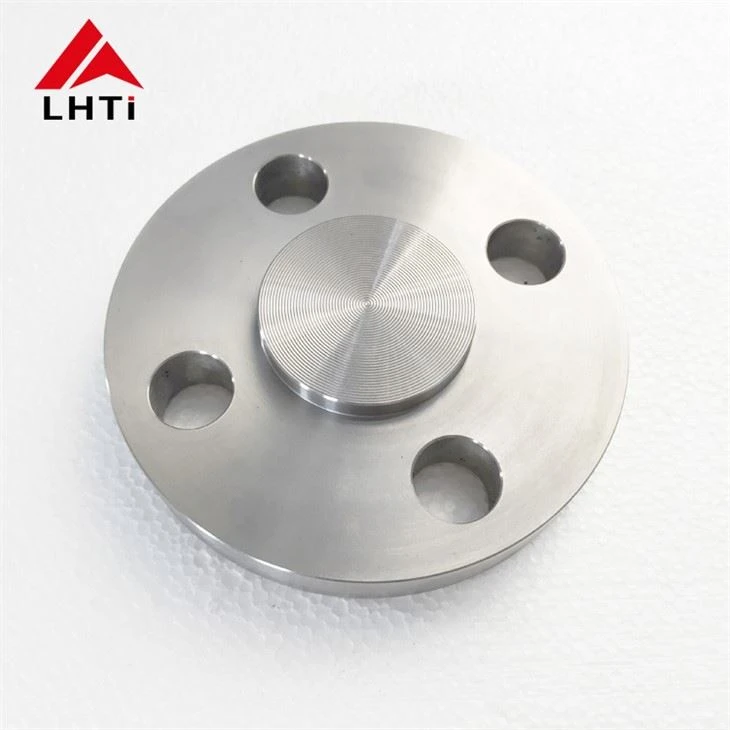

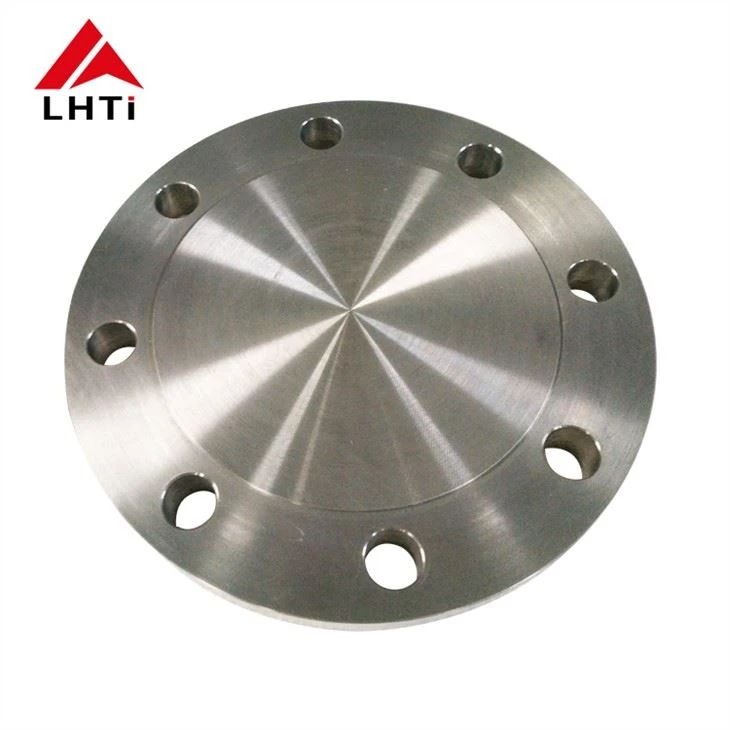

Mae fflangi BL hefyd yn cael ei adnabod fel fflangi dall. Mae'n ffurf cysylltu o fflange. Mae'n fflangi mewn gwirionedd heb dwll yn y canol. Un o'i swyddogaethau yw rhwystro diwedd y biblinell, a'r llall yw hwyluso'r gwaith o gael gwared ar sbwriel ar y gweill yn ystod y gwaith cynnal a chadw. O ran yr effaith blocio, mae'n cael yr un effaith â chap a phlyg. Ond nid oes modd datgysylltu'r plwg, tra bod y fflangi biniau wedi'i osod gyda bollt, sy'n gyfleus iawn i'w ddatgysylltu.
Enw'r Cynnyrch: Titanium Blind Flange
Safon: ANSI / ASME B16.5
Deunydd: Gr1 Gr2 Gr5 Gr7 Gr12
Cais: Diwydiant cemegol
Pris yr Uned: $25usd/pc-$85usd/pc
Arwyneb Sealing: RF, FF, TG, RJ ac ati.
Maint: SSW 1/2 - SSW 24(DN 10 - 2000)
Pwysau: 150#-2500 #
Arwyneb: Pwylaidd >
Techneg: Forged a CNC Machined
Arolygiad: UT% PT%
Tystysgrif: ISO9001, TUV ac ati.
Holl Brofion ansawdd Titanium BL Flange:
Profion gweledol (VT)
Profion Ultrasonic (UT)
Profion Radiograffig (RT)
Profion gronynnau magnetig (MT)
Profion Penetrant/Dye treiddio (PT)
Eddy Profion cyfredol (ET)
Allyriadau Acwstig(AE)

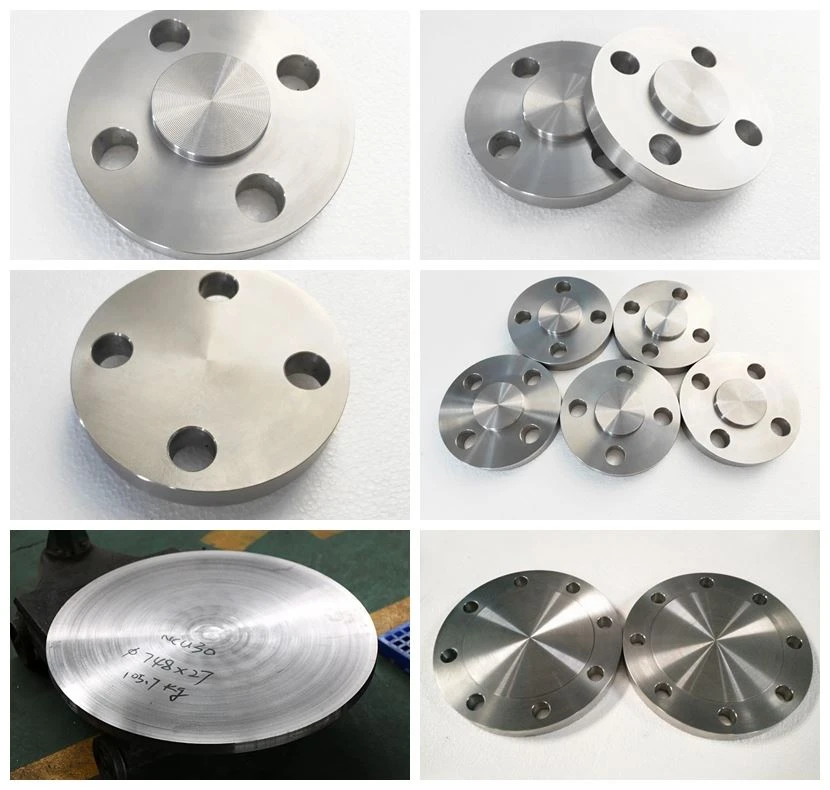

Delwedd Fanwl o Titanium BL Flange:
| Titanium Blind Flange Dosbarth 150 | ||||||
| Nom. Maint Pibellau | Flange Dia. | Flange Thick | Dia Wyneb a Godwyd. | Na. o Dyllau | Dia. o Bolts | Dia. O Gylch Bollt |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 4 | 1/2 | 2-3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 4 | 1/2 | 2-3/4 |
| 1 | 4-1/4 | 9/16 | 2 | 4 | 1/2 | 3-1/8 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 4 | 1/2 | 3-1/2 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 4 | 1/2 | 3-7/8 |
| 2 | 6 | 3/4 | 3-5/8 | 4 | 5/8 | 4-3/4 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 4 | 5/8 | 5-1/2 |
| 3 | 7-1/2 | 15/16 | 5 | 4 | 5/8 | 6 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 8 | 5/8 | 7 |
| 4 | 9 | 15/16 | 6-3/16 | 8 | 5/8 | 7-1/2 |
| 5 | 10 | 15/16 | 7-5/16 | 8 | 3/4 | 8-1/2 |
| 6 | 11 | 1 | 8-1/2 | 8 | 3/4 | 9-1/2 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 8 | 3/4 | 11-3/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 7/8 | 14-1/4 |
| 12 | 19 | 1-1/4 | 15 | 12 | 7/8 | 17 |
| 14 | 21 | 1-3/8 | 16-1/4 | 12 | 1 | 18-3/4 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 16 | 1 | 21-1/4 |
| 18 | 25 | 1-9/16 | 21 | 16 | 1-1/8 | 22-3/4 |
| 20 | 27-1/2 | 1-11/16 | 23 | 20 | 1-1/8 | 25 |
| 24 | 32 | 1-7/8 | 27-1/4 | 20 | 1-1/4 | 29-1/2 |
| Titanium Blind Flange Dosbarth 300 | ||||||
| Nom. Maint Pibellau | Flange Dia. | Flange Thick | Dia Wyneb a Godwyd. | Na. o Dyllau | Dia. O Bolts | Dia. O Gylch Bollt |
| 1/2 | 3-3/4 | 9/16 | 1-3/8 | 4 | 1/2 | 2-5/8 |
| 3/4 | 4-5/8 | 5/8 | 1-11/16 | 4 | 5/8 | 3-1/4 |
| 1 | 4-7/8 | 11/16 | 2 | 4 | 5/8 | 3-1/2 |
| 1-1/4 | 5-1/4 | 3/4 | 2-1/2 | 4 | 5/8 | 3-7/8 |
| 1-1/2 | 6-1/8 | 13/16 | 2-7/8 | 4 | 3/4 | 4-1/2 |
| 2 | 6-1/2 | 7/8 | 3-5/8 | 8 | 5/8 | 5 |
| 2-1/2 | 7-1/2 | 1 | 4-1/8 | 8 | 3/4 | 5-7/8 |
| 3 | 8-1/4 | 1-1/8 | 5 | 8 | 3/4 | 6-5/8 |
Tagiau poblogaidd: titaniwm bl fflange, Tsieina, gweithgynhyrchwyr, cyflenwyr, ffatri, wedi'i haddasu, pris isel, mewn stoc, a wnaed yn Tsieina
